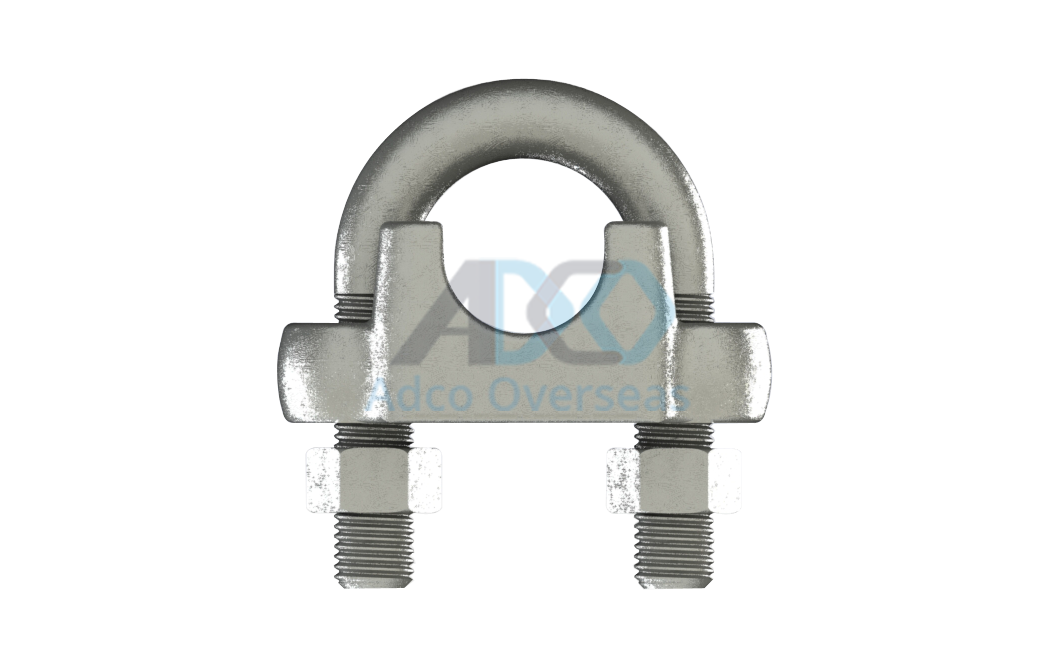

WIRE ROPE CLAMP

Bull Dog Grips and Wire Rope Clamps are used as steel rope attachments. They are can be used as part of stay sets. Apart from being used for anchoring, there are a other uses for Bull Dog Grips. They are available in a wide range of sizes and are hot dip galvanized to prevent rusting and for a smooth finish. The body of the Bull Dog Grip is forged which ensures superior strength.

WIRE ROPE CLIPS AND BULL DOG GRIPS CAN BE SUPPLIED WITH STAY WIRE AND EARTH WIRE AS PER SIZE REQUIRED
PRODUCTS HOT DIP GALVANIZED AS PER BS EN ISO 1461 OR EQUIVALENT INTERNATIONAL STANDARDS
PRODUCTS MANUFACTURED AS PER ALL ESTABLISHED INTERNATIONAL STANDARDS SUCH AS ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
PRODUCTS CAN BE MANUFACTURED OR CUSTOMISED AS PER CLIENT REQUIREMENT

PRODUCT CODE	DIMENSION
	NOM. DIA OF ROPE	U-BOLT DIA	BODY WIDTH
	MM	MM	MM
AO-BD-GRI-01	8	8	33
AO-BD-GRI-02	9	10	41
AO-BD-GRI-03	10	10	41
AO-BD-GRI-04	12	12	49
AO-BD-GRI-05	13	12	49
AO-BD-GRI-06	14	12	51
AO-BD-GRI-07	15	12	51
AO-BD-GRI-08	16	16	59
AO-BD-GRI-09	18	16	64
AO-BD-GRI-10	19	16	64
AO-BD-GRI-11	20	16	64
AO-BD-GRI-12	22	16	72
AO-BD-GRI-13	24	20	87
AO-BD-GRI-14	26	20	91
AO-BD-GRI-15	28	20	91
AO-BD-GRI-16	32	20	94
