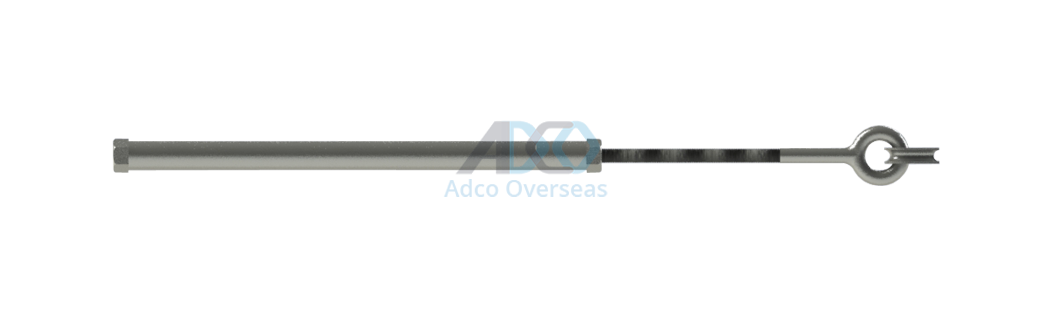

TURNBUCKLE - TUBULAR

Turnbuckles are used in a wide variety of applications to adjust the tension. Turnbuckles, also known as Stay Tightener, are deisgned to withstand the strength of the assembly they are a part of, and as such can be customized for all applications and uses. Depending on the application and the end use, the Turnbuckles are manufactured in various designs. Utilities around the world have their own designs and we customize as per all. Manufacturing and galvanzing are done as per prevalent international standards and can also be customised to suit client needs and purpose. Chemical and mechanical tests are run on all batches to ensure all Turnbuckles are as per requirement. Turnbuckles are used in adjustable stay set assemblies to ensure optimum tension is maintained, and therefore can be supplied together with Stay or Anchor Rods, Stay Plates, Eye Bolts, Pole Clamps, Stay Brackets, Guy Grips, etc. All our turnbuckles are riveted to the crosshead or channel as the case may be, hence ensuring superior strength and finish.

  • AVAILABLE IN A VARIETY OF STRENGTH RATINGS AND GRADES
  • CAN BE SUPPLIED AS PART OF STAY SET ASSEMBLY ALONG WITH STAY ROD, STAY PLATES AND THIMBLE
  • PRODUCT MAY BE WELDED OR FORGED AS REQUIRED
  • PRODUCTS HOT DIP GALVANIZED AS PER BS EN ISO 1461 OR EQUIVALENT INTERNATIONAL STANDARDS
  • PRODUCTS MANUFACTURED AS PER ALL ESTABLISHED INTERNATIONAL STANDARDS SUCH AS ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
  • PRODUCTS CAN BE MANUFACTURED OR CUSTOMISED AS PER CLIENT REQUIREMENT
PRODUCT CODE DIMENSION
SUITABLE FOR STAY ROD LENGTH
MM IN MM
AO-TB-TUB-01 12 '1/2 250
AO-TB-TUB-02 12 '1/2 300
AO-TB-TUB-03 12 '1/2 400

AO-TB-TUB-04 16 '5/8 400
AO-TB-TUB-05 16 '5/8 450
AO-TB-TUB-06 16 '5/8 500

AO-TB-TUB-07 20 '3/4 400
AO-TB-TUB-08 20 '3/4 450
AO-TB-TUB-09 20 '3/4 500

AO-TB-TUB-10 22 '7/8 400
AO-TB-TUB-11 22 '7/8 450
AO-TB-TUB-12 22 '7/8 500

AO-TB-TUB-13 25 '1 400
AO-TB-TUB-14 25 '1 450
AO-TB-TUB-15 25 '1 500
