Tension Clamp - Bolted Type
- Manufactured from high strength aluminium alloy
- Available in a variety of strength ratings and grades
- Can be supplied complete with other insulator hardware as required
- Design and size can be modified and manufactured as per customer requirement and use
- Bolts and U-Bolts can be of Galvanized Steel as per BS EN ISO 1461 or any equivalent international standard or Stainless Steel
- Bolts and U-Bolts available in a range strength ratings
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
| PRODUCT CODE |
CONDUCTOR DIA. |
DIMENSIONS |
NUMBER OF U-BOLTS |
| MIN. |
MAX. |

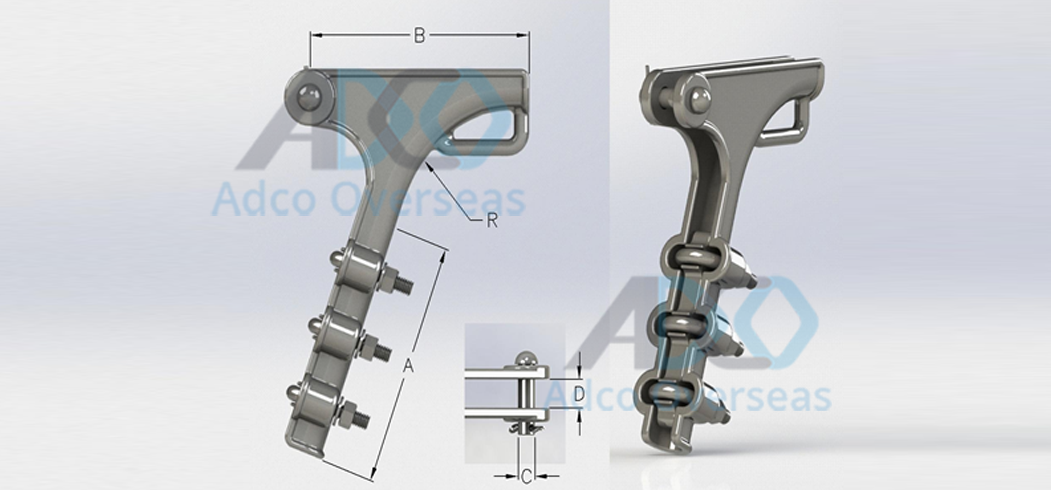

A |
B |
C |
D |
R |
| MM |
MM |
MM |
MM |
MM |
MM |
MM |
| AO-TCL-BLT-01 |
5.10 |
11.70 |
101.60 |
149.20 |
19.00 |
16.00 |
69.80 |
2 |
| AO-TCL-BLT-02 |
7.60 |
17.80 |
222.20 |
107.60 |
22.20 |
16.00 |
76.20 |
3 |
| AO-TCL-BLT-03 |
5.10 |
13.50 |
187.30 |
203.20 |
19.00 |
16.00 |
95.20 |
3 |
| AO-TCL-BLT-04 |
15.20 |
21.60 |
330.20 |
152.40 |
25.40 |
16.00 |
114.30 |
4 |
| AO-TCL-BLT-05 |
7.60 |
17.30 |
238.10 |
260.40 |
22.20 |
16.00 |
120.60 |
4 |
| AO-TCL-BLT-06 |
17.80 |
25.40 |
412.80 |
203.20 |
28.60 |
16.00 |
158.80 |
5 |
| AO-TCL-BLT-07 |
12.70 |
24.40 |
330.20 |
327.00 |
28.60 |
16.00 |
155.60 |
5 |
| AO-TCL-BLT-08 |
19.30 |
30.00 |
495.30 |
228.60 |
31.80 |
19.00 |
241.30 |
6 |
| AO-TCL-BLT-09 |
19.00 |
32.50 |
463.60 |
381.00 |
34.90 |
19.00 |
206.40 |
6 |
| AO-TCL-BLT-10 |
25.40 |
38.10 |
565.20 |
254.00 |
41.30 |
19.00 |
254.00 |
7 |
