Suspension Clamp
- Manufactured from high strength aluminium alloy
- Available in a variety of strength ratings and grades
- Can be supplied complete with other insulator hardware as required
- Design and size can be modified and manufactured as per customer requirement and use
- Bolts and U-Bolts can be of Galvanized Steel as per BS EN ISO 1461 or any equivalent international standard or Stainless Steel
- Bolts and U-Bolts available in a range strength ratings
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
| PRODUCT CODE |
CONDUCTOR DIA. |

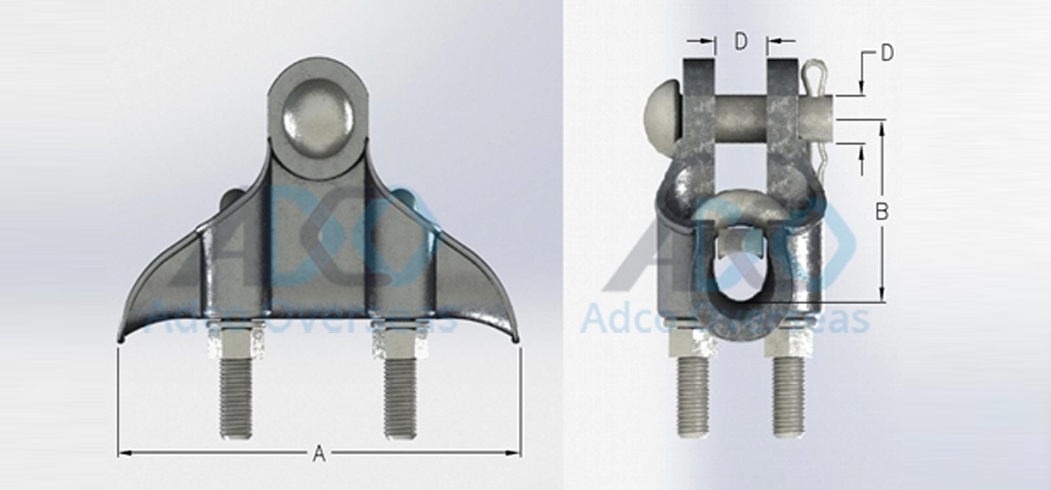

DIMENSIONS |
| MIN. |
MAX. |
A |
B |
C |
D |
| MM |
MM |
MM |
MM |
MM |
MM |
| AO-SCL-01 |
7.6 |
17.8 |
181 |
60.5 |
19 |
16 |
| AO-SCL-02 |
12.7 |
21.1 |
190 |
63.5 |
22 |
16 |
| AO-SCL-03 |
12.7 |
25.9 |
203 |
66.5 |
27 |
16 |
| AO-SCL-04 |
20.3 |
29.2 |
203 |
70 |
32 |
16 |
| AO-SCL-05 |
22.9 |
35.6 |
222 |
71.5 |
37 |
16 |
| AO-SCL-06 |
25.4 |
38.9 |
228 |
85.5 |
42 |
16 |
| AO-SCL-07 |
27.9 |
41.1 |
241 |
85.5 |
44 |
16 |
| AO-SCL-08 |
30.0 |
41.9 |
141 |
82.5 |
45 |
16 |
| AO-SCL-09 |
31.8 |
47 |
254 |
89 |
48 |
16 |
| AO-SCL-10 |
35.6 |
50.8 |
267 |
92 |
54 |
16 |
| AO-SCL-11 |
38.1 |
50.8 |
254 |
101.5 |
54 |
16 |
| AO-SCL-12 |
43.2 |
57.2 |
280 |
101.5 |
60 |
16 |
| AO-SCL-13 |
44.4 |
57.2 |
279 |
101.5 |
60 |
16 |
| AO-SCL-14 |
50.8 |
63.5 |
279 |
108 |
67 |
16 |
| AO-SCL-15 |
50.8 |
64.8 |
305 |
111 |
70 |
16 |
