Strain Clamp - Compression Type

Manufactured from high strength aluminium alloy
Available in a variety of strength ratings and grades
Can be supplied complete with other insulator hardware as required
Design and size can be modified and manufactured as per customer requirement and use
Bolts and U-Bolts can be of Galvanized Steel as per BS EN ISO 1461 or any equivalent international standard or Stainless Steel
Bolts and U-Bolts available in a range strength ratings
Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.

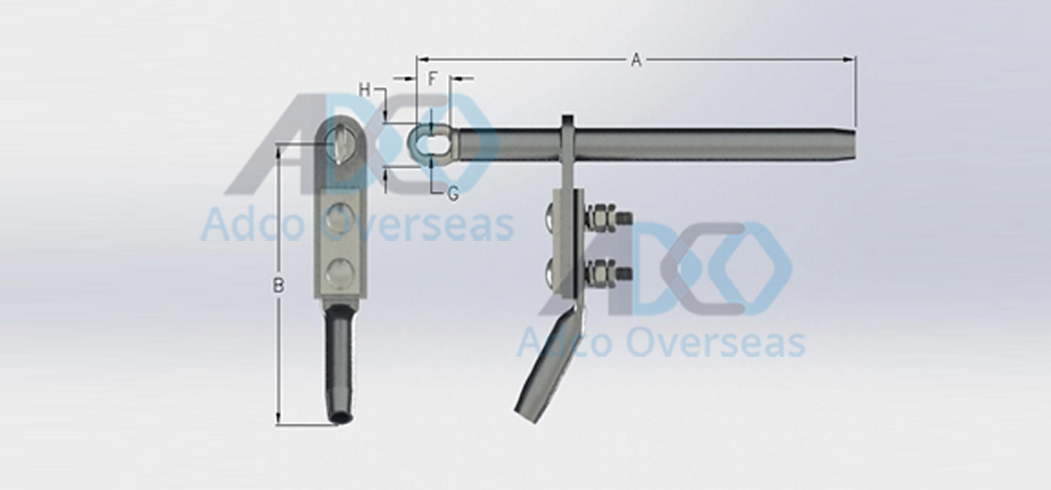

PRODUCT CODE	ACSR CONDUCTOR		DIMENSIONS									SIZE & NUMBER OF BOLTS
	STRANDING & WIRE DIAMETER		A	B	F	G	H	ALUMINIUM SLEEVE		STEEL SLEEVE
	STRANDING & WIRE DIAMETER		A	B	F	G	H	ID	OD	ID	OD
	ALUMINIUM	STEEL	MM	MM	MM	MM	MM	MM	MM	MM	MM
AO-TCL-COMP-01	6/4.72	7/1.57	391	196	50	20	12	15.3	26	5.0	12	M12/2
AO-TCL-COMP-02	6/5.28	7/1.90	431	222	50	20	12	17.0	30	5.6	12	M12/2
AO-TCL-COMP-03	26/2.54	7/1.90	431	222	50	20	12	17.0	30	6.0	12	M12/2
AO-TCL-COMP-04	30/2.35	7/2.36	440	222	50	20	18	17.7	30	7.4	16	M12/2
AO-TCL-COMP-05	30/2.59	7/2.59	465	234	50	20	18	19.3	34	8.1	18	M12/2
AO-TCL-COMP-06	30/2.79	7/2.79	465	234	50	20	18	20.8	34	8.8	18	M12/2
AO-TCL-COMP-07	30/3.00	7/3.00	510	266	50	20	18	22.2	38	9.4	20	M16/2
AO-TCL-COMP-08	30/3.18	7/3.18	510	266	50	20	18	23.5	38	9.9	20	M16/2
AO-TCL-COMP-09	30/3.35	7/3.35	573	284	60	22	20	24.8	44	10.5	22	M16/2
AO-TCL-COMP-10	30/3.71	7/3.71	579	284	60	26	24	27.4	44	11.5	24	M16/2
AO-TCL-COMP-11	30/3.99	7/3.99	624	301	60	26	24	29.3	48	12.4	26	M12/4
AO-TCL-COMP-12	30/4.27	7/4.27	659	317	60	26	24	31.3	52	13.3	28	M12/4
AO-TCL-COMP-13	54/3.18	7/3.18	629	317	60	26	24	29.8	52	9.9	24	M12/4
AO-TCL-COMP-14	30/4.50	7/4.50	659	317	60	26	24	32.9	52	14.0	30	M12/4
AO-TCL-COMP-15	54/3.35	7/3.35	659	317	60	26	24	31.5	52	10.5	28	M12/4
AO-TCL-COMP-16	54/3.53	7/3.53	659	333	60	26	24	33.2	54	11.0	24	M12/4
