Socket Tongue - Horn Holder
- Manufactured from high strength forged steel
- Available in a variety of strength ratings and grades
- Supplied complete with Bolts, Rivets or Cotters, Nuts, Washers, Split Pin, R-Clip, W-Clip Etc. as required
- Design and size can be modified and manufactured as per customer requirement and use
- Hot Dip Galvanized as per BS EN ISO 1461 or equivalent international standards
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
| PRODUCT CODE |

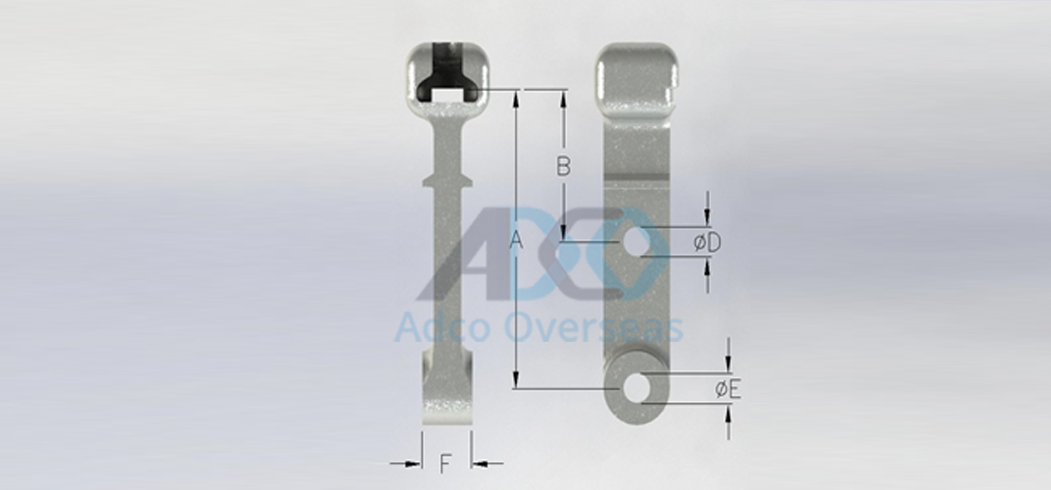

DIMENSIONS |
|
| SOCKET DESIGNATION |
A |
B |
D |
E |
F |
MIN. FAILING LOAD |
| MM |
MM |
MM |
MM |
MM |
kN |
| AO-STON-HH-01 |
16B |
130 |
86 |
18 |
18 |
16 |
70 |
| AO-STON-HH-02 |
20 |
143 |
70 |
18 |
22 |
25 |
125 |
| AO-STON-HH-03 |
20 |
143 |
70 |
18 |
27 |
32 |
125 |
| AO-STON-HH-04 |
20 |
143 |
70 |
18 |
29 |
38 |
125 |
| AO-STON-HH-05 |
20 |
143 |
70 |
18 |
22 |
17.5 |
125 |
| AO-STON-HH-06 |
24 |
159 |
76 |
18 |
24 |
22 |
190 |
| AO-STON-HH-07 |
24 |
159 |
76 |
18 |
29 |
38 |
190 |
