Socket Thimble
- Manufactured from high strength forged steel
- Available in a variety of strength ratings and grades
- Supplied complete with Bolts, Rivets or Cotters, Nuts, Washers, Split Pin, R-Clip, W-Clip Etc. as required
- Design and size can be modified and manufactured as per customer requirement and use
- Hot Dip Galvanized as per BS EN ISO 1461 or equivalent international standards
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.

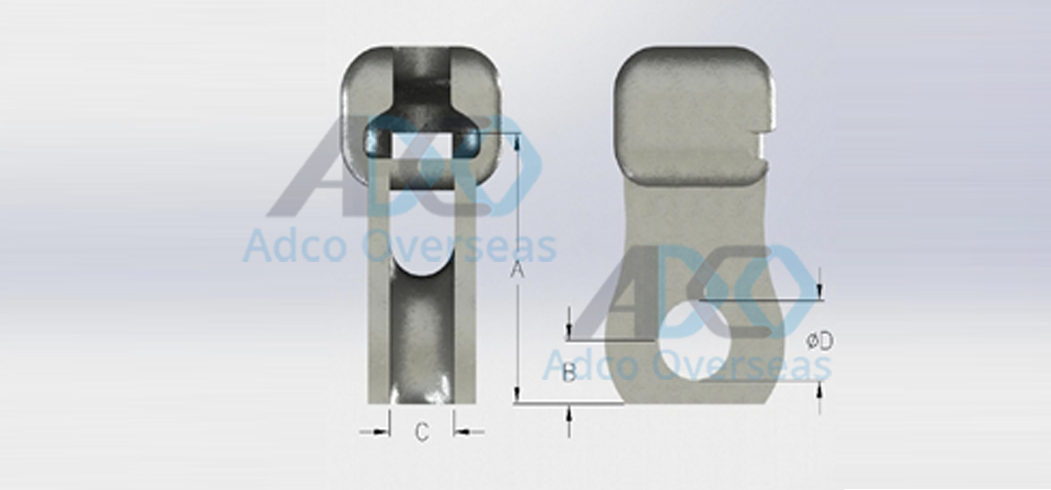

| PRODUCT CODE |
DIMENSIONS |
|
| SOCKET DESIGNATION |
A |
B |
C |
D |
MIN. FAILING LOAD |
| MM |
MM |
MM |
MM |
kN |
| AO-SOC-THIM-01 |
16B |
75 |
20 |
20 |
24 |
70 |
