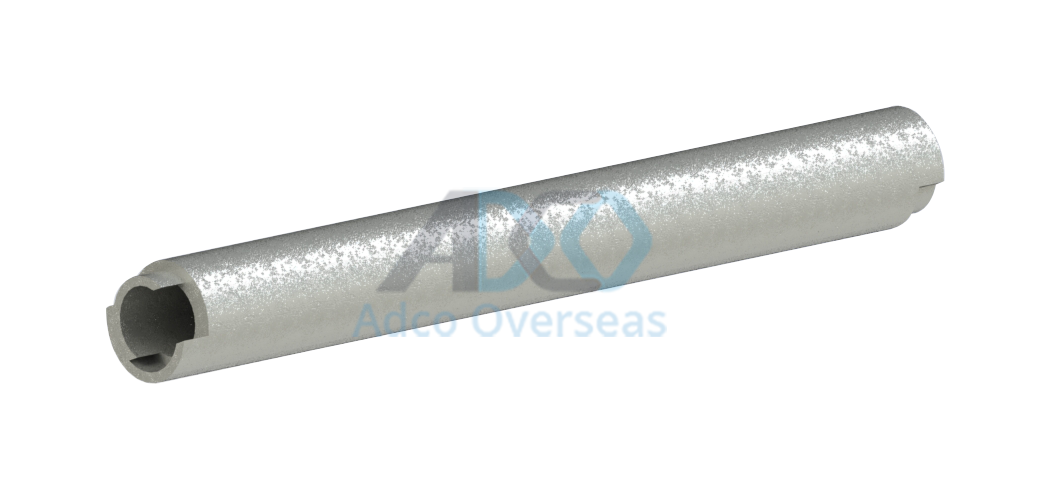

Repair Sleeve
- Design and size can be modified and manufactured as per customer requirement and use
- Available for all sizes of ACSR, AAC, AAAC, Copper Conductors, etc.
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
| ACSR CONDUCTOR |
| PRODUCT CODE |
|
|
DIMENSIONS |
| SUITABLE CONDUCTOR DIA |
ALUMINIUM SLEEVE |
| NAME |
MM |
LENGTH |
OUTISDE DIA |
| |
|
|
MM |
MM |
| AO-JOI-RSL-01 |
RABBIT |
10.10 |
150 |
20.80 |
| AO-JOI-RSL-02 |
RACCOON |
12.30 |
180 |
30.00 |
| AO-JOI-RSL-03 |
DOG |
14.20 |
203 |
30.00 |
| AO-JOI-RSL-04 |
COUGAR |
15.30 |
203 |
30.00 |
| AO-JOI-RSL-05 |
COYOTE |
15.90 |
229 |
30.00 |
| AO-JOI-RSL-06 |
TIGER |
16.50 |
229 |
33.00 |
| AO-JOI-RSL-07 |
WOLF |
18.10 |
229 |
33.00 |
| AO-JOI-RSL-08 |
JAGUAR |
19.30 |
241 |
38.80 |
| AO-JOI-RSL-09 |
LYNX |
19.50 |
241 |
38.00 |
| AO-JOI-RSL-010 |
PANTHER |
21.00 |
241 |
38.00 |
| AO-JOI-RSL-11 |
LION |
22.30 |
241 |
38.00 |
| AO-JOI-RSL-12 |
GOAT |
26.00 |
254 |
43.00 |
| AO-JOI-RSL-13 |
ANTELOPE |
26.70 |
254 |
43.00 |
| AO-JOI-RSL-14 |
BISON |
27.00 |
254 |
43.00 |
| AO-JOI-RSL-15 |
SHEEP |
27.90 |
280 |
48.00 |
| AO-JOI-RSL-16 |
ZEBRA |
28.60 |
280 |
48.00 |
| AO-JOI-RSL-17 |
ELK |
31.50 |
305 |
54.00 |
| AO-JOI-RSL-18 |
MOOSE |
31.80 |
305 |
54.00 |
| AAC / AAAC CONDUCTOR |
| PRODUCT CODE |
|
|
DIMENSIONS |
| SUITABLE CONDUCTOR DIA |
ALUMINIUM SLEEVE |
| NAME |
MM |
LENGTH |
OUTISDE DIA |
| |
|
|
MM |
MM |
| AO-JOI-RSL-19 |
GNAT |
6.63 |
150 |
12.00 |
| AO-JOI-RSL-20 |
CEDAR |
7.62 |
150 |
12.00 |
| AO-JOI-RSL-21 |
DEODAR |
8.31 |
150 |
16.00 |
| AO-JOI-RSL-22 |
FIR |
8.85 |
150 |
16.00 |
| AO-JOI-RSL-23 |
ANT |
9.30 |
150 |
18.00 |
| AO-JOI-RSL-24 |
HAZEL |
9.90 |
150 |
18.00 |
| AO-JOI-RSL-25 |
PINE |
10.80 |
150 |
20.80 |
| AO-JOI-RSL-26 |
WILLOW |
12.10 |
180 |
20.80 |
| AO-JOI-RSL-27 |
WASP |
13.20 |
180 |
23.00 |
| AO-JOI-RSL-28 |
OAK |
14.00 |
203 |
30.00 |
| AO-JOI-RSL-29 |
MULBERRY |
15.90 |
203 |
30.00 |
| AO-JOI-RSL-30 |
ASH |
17.40 |
229 |
33.00 |
| AO-JOI-RSL-31 |
ELM |
18.80 |
229 |
33.00 |
| AO-JOI-RSL-32 |
POPLAR |
20.10 |
241 |
38.00 |
| AO-JOI-RSL-33 |
SYCAMORE |
22.60 |
241 |
38.00 |
| AO-JOI-RSL-34 |
UPAS |
24.70 |
241 |
43.00 |
| AO-JOI-RSL-35 |
YEW |
28.40 |
254 |
43.00 |
| AO-JOI-RSL-36 |
RUBUS |
31.50 |
305 |
54.00 |
