Plate - Landing
- Manufactured from high strength galvanized steel
- Available in a variety of strength ratings and grades
- Can be supplied complete with entire range of insulator string assemblies
- Design and size can be modified and manufactured as per customer requirement and use
- Hot Dip Galvanized as per BS EN ISO 1461 or equivalent international standards
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.

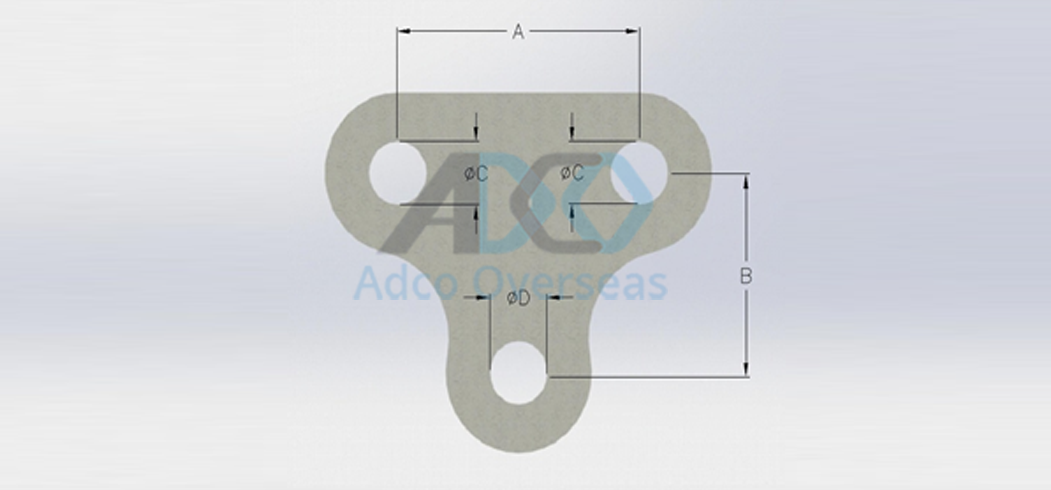

| PRODUCT CODE |
DIMENSIONS |
|
| A |
B |
C |
D |
MIN. FAILING LOAD |
| MM |
MM |
MM |
MM |
kN |
| AO-PLT-LAN-01 |
76 |
57 |
18 |
18 |
70 |
| AO-PLT-LAN-02 |
76 |
65 |
22 |
24 |
125 |
| AO-PLT-LAN-03 |
76 |
65 |
24 |
24 |
190 |
