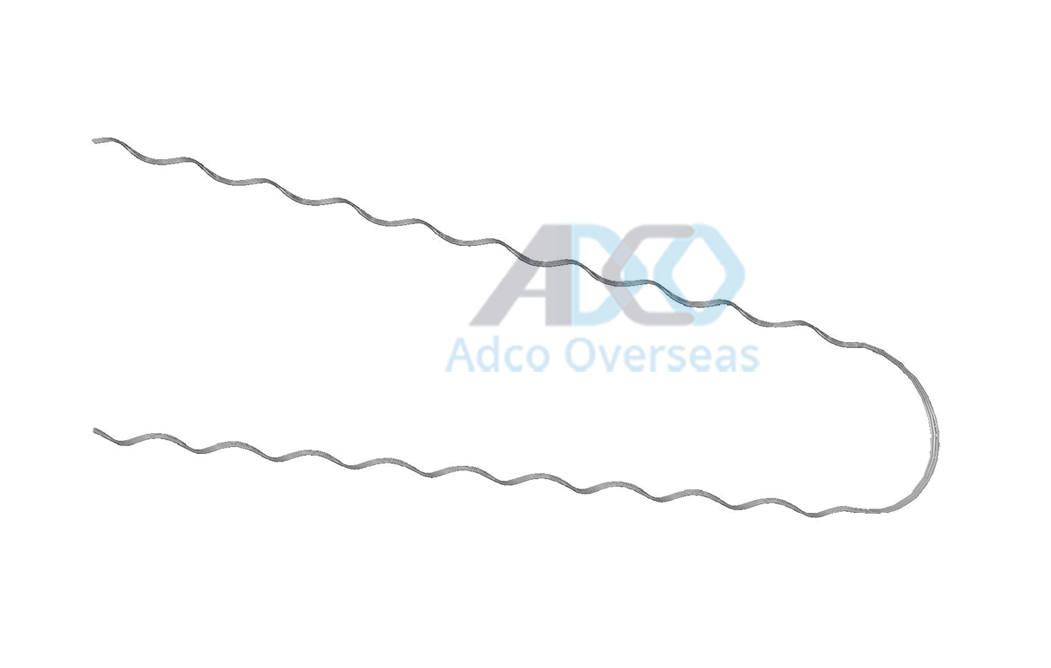

Helically Formed Dead End Grip
- Manufactured from high strength aluminium coated steel or galvanized steel
- Available in a variety of strength ratings and grades
- Can be supplied complete with other insulator hardware as required
- Design and size can be modified and manufactured as per customer requirement and use
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
| PRODUCT CODE |
CONDUCTOR DIA |
|
| MIN |
MAX |
MIN |
MAX |
LENGTH |
| IN |
IN |
MM |
MM |
IN |
| AO-HF-DEA-01 |
0.182 |
0.203 |
4.623 |
5.156 |
16 |
| AO-HF-DEA-02 |
0.229 |
0.257 |
5.817 |
6.528 |
17 |
| AO-HF-DEA-03 |
0.290 |
0.325 |
7.366 |
8.255 |
24 |
| AO-HF-DEA-04 |
0.326 |
0.364 |
8.280 |
9.246 |
26 |
| AO-HF-DEA-05 |
0.365 |
0.409 |
9.271 |
10.389 |
26 |
| AO-HF-DEA-06 |
0.410 |
0.460 |
10.414 |
11.684 |
28 |
| AO-HF-DEA-07 |
0.461 |
0.516 |
11.709 |
13.106 |
32 |
| AO-HF-DEA-08 |
0.517 |
0.577 |
13.132 |
14.656 |
34 |
| AO-HF-DEA-09 |
0.578 |
0.653 |
14.681 |
16.586 |
35 |
| AO-HF-DEA-10 |
0.654 |
0.739 |
16.612 |
18.771 |
39 |
| AO-HF-DEA-11 |
0.740 |
0.837 |
18.796 |
21.260 |
50 |
| AO-HF-DEA-12 |
0.838 |
0.947 |
21.285 |
24.054 |
55 |
| AO-HF-DEA-13 |
0.948 |
1.071 |
24.079 |
27.203 |
62 |
| AO-HF-DEA-14 |
1.072 |
1.212 |
27.229 |
30.785 |
70 |
