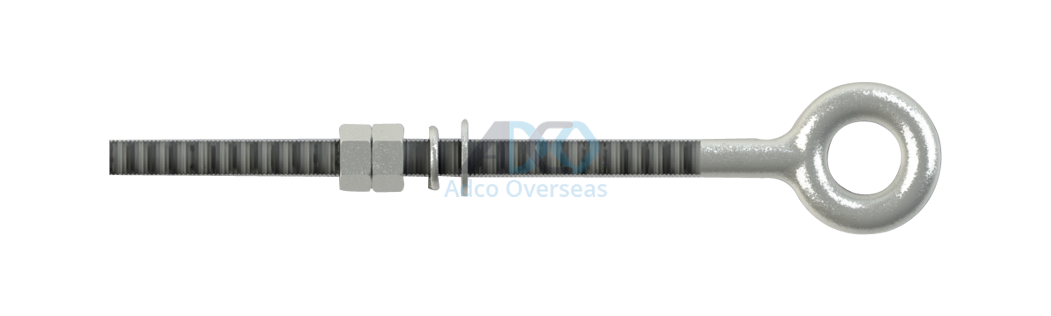

EYE BOLT - ROUND EYE
- AVAILABLE IN A VARIETY OF STRENGTH RATINGS AND GRADES
- EYE MAY BE WELDED OR FORGED AS REQUIRED
- CAN BE SUPPLIED COMPLETE WITH EYE NUTS
- THREADS MAY BE CUT OR ROLLED AS REQUIRED
- THREADS MAY BE AS PER INCH SERIES, MM SERIES, BSW, ETC. AS REQUIRED
- PRODUCTS HOT DIP GALVANIZED AS PER BS EN ISO 1461 OR EQUIVALENT INTERNATIONAL STANDARDS
- PRODUCTS MANUFACTURED AS PER ALL ESTABLISHED INTERNATIONAL STANDARDS SUCH AS ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
- PRODUCTS CAN BE MANUFACTURED OR CUSTOMISED AS PER CLIENT REQUIREMENT
| PRODUCT CODE |
DIMENSION |
| DIA |
LENGTH |
THREAD LENGTH |
EYE WIDTH |
| MM |
IN |
MM |
IN |
MM |
MM |
| AO-EB-RE-01 |
12 |
'1/2 |
100 |
4 |
75 |
32 / 40 |
| AO-EB-RE-02 |
12 |
'1/2 |
150 |
6 |
75 |
32 / 40 |
| AO-EB-RE-03 |
12 |
'1/2 |
200 |
8 |
100 |
32 / 40 |
| AO-EB-RE-04 |
12 |
'1/2 |
250 |
10 |
100 |
32 / 40 |
| AO-EB-RE-05 |
12 |
'1/2 |
300 |
12 |
150 |
32 / 40 |
| AO-EB-RE-06 |
12 |
'1/2 |
350 |
14 |
150 |
32 / 40 |
| AO-EB-RE-07 |
12 |
'1/2 |
400 |
16 |
200 |
32 / 40 |
| AO-EB-RE-08 |
12 |
'1/2 |
500 |
20 |
250 |
32 / 40 |
| |
| AO-EB-RE-09 |
16 |
'5/8 |
150 |
6 |
75 |
32 / 40 |
| AO-EB-RE-10 |
16 |
'5/8 |
200 |
8 |
100 |
32 / 40 |
| AO-EB-RE-11 |
16 |
'5/8 |
250 |
10 |
100 |
32 / 40 |
| AO-EB-RE-12 |
16 |
'5/8 |
300 |
12 |
150 |
32 / 40 |
| AO-EB-RE-13 |
16 |
'5/8 |
350 |
14 |
150 |
32 / 40 |
| AO-EB-RE-14 |
16 |
'5/8 |
400 |
16 |
200 |
32 / 40 |
| AO-EB-RE-15 |
16 |
'5/8 |
500 |
20 |
250 |
32 / 40 |
| AO-EB-RE-16 |
16 |
'5/8 |
600 |
24 |
300 |
40 / 50 |
| AO-EB-RE-17 |
16 |
'5/8 |
660 |
26 |
300 |
40 / 50 |
| AO-EB-RE-18 |
16 |
'5/8 |
700 |
- |
350 |
40 / 50 |
| AO-EB-RE-19 |
16 |
'5/8 |
760 |
30 |
350 |
40 / 50 |
| AO-EB-RE-20 |
16 |
'5/8 |
900 |
- |
500 |
40 / 50 |
| AO-EB-RE-21 |
16 |
'5/8 |
1000 |
- |
500 |
40 / 50 |
| |
| AO-EB-RE-22 |
20 |
'3/4 |
200 |
8 |
100 |
40 / 50 |
| AO-EB-RE-23 |
20 |
'3/4 |
250 |
10 |
100 |
40 / 50 |
| AO-EB-RE-24 |
20 |
'3/4 |
300 |
12 |
150 |
40 / 50 |
| AO-EB-RE-25 |
20 |
'3/4 |
350 |
14 |
150 |
40 / 50 |
| AO-EB-RE-26 |
20 |
'3/4 |
400 |
16 |
200 |
40 / 50 |
| AO-EB-RE-27 |
20 |
'3/4 |
500 |
20 |
250 |
40 / 50 |
| AO-EB-RE-28 |
20 |
'3/4 |
600 |
24 |
300 |
40 / 50 |
| AO-EB-RE-29 |
20 |
'3/4 |
660 |
26 |
300 |
40 / 50 |
| AO-EB-RE-30 |
20 |
'3/4 |
700 |
- |
350 |
40 / 50 |
| AO-EB-RE-31 |
20 |
'3/4 |
760 |
30 |
350 |
40 / 50 |
| AO-EB-RE-32 |
20 |
'3/4 |
900 |
- |
500 |
40 / 50 |
| AO-EB-RE-33 |
20 |
'3/4 |
1000 |
- |
500 |
40 / 50 |
| |
| AO-EB-RE-34 |
22 |
'7/8 |
300 |
12 |
150 |
50 / 64 |
| AO-EB-RE-35 |
22 |
'7/8 |
350 |
14 |
150 |
50 / 64 |
| AO-EB-RE-36 |
22 |
'7/8 |
400 |
16 |
200 |
50 / 64 |
| AO-EB-RE-37 |
22 |
'7/8 |
500 |
20 |
250 |
50 / 64 |
| AO-EB-RE-38 |
22 |
'7/8 |
600 |
24 |
300 |
50 / 64 |
| AO-EB-RE-39 |
22 |
'7/8 |
660 |
26 |
300 |
50 / 64 |
| AO-EB-RE-40 |
22 |
'7/8 |
700 |
- |
350 |
50 / 64 |
| AO-EB-RE-41 |
22 |
'7/8 |
760 |
30 |
350 |
50 / 64 |
| AO-EB-RE-42 |
22 |
'7/8 |
900 |
- |
500 |
50 / 64 |
| AO-EB-RE-43 |
22 |
'7/8 |
1000 |
- |
500 |
50 / 64 |
| |
| AO-EB-RE-44 |
25 |
1 |
300 |
12 |
150 |
50 / 64 |
| AO-EB-RE-45 |
25 |
1 |
350 |
14 |
150 |
50 / 64 |
| AO-EB-RE-46 |
25 |
1 |
400 |
16 |
200 |
50 / 64 |
| AO-EB-RE-47 |
25 |
1 |
500 |
20 |
250 |
50 / 64 |
| AO-EB-RE-48 |
25 |
1 |
600 |
24 |
300 |
50 / 64 |
| AO-EB-RE-49 |
25 |
1 |
660 |
26 |
300 |
50 / 64 |
| AO-EB-RE-50 |
25 |
1 |
700 |
- |
350 |
50 / 64 |
| AO-EB-RE-51 |
25 |
1 |
760 |
30 |
350 |
50 / 64 |
| AO-EB-RE-52 |
25 |
1 |
900 |
- |
500 |
50 / 64 |
| AO-EB-RE-53 |
25 |
1 |
1000 |
- |
500 |
50 / 64 |
