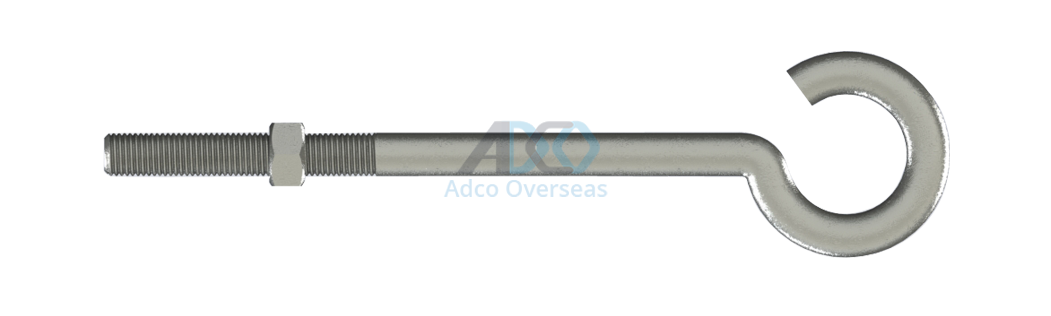

EYE BOLT - HOOK TYPE

Eye Bolts are an effective and easy solution to attach fittings to poles and can also be used for multiple other purposes. Manufactured in multiple sizes and lengths, they can be used on all pole types and sizes. Eye Bolts are hot dip galvanized after manufacturing to give smooth finish and to prevent from rust. Manufacturing and galvanzing are done as per prevalent international standards and can also be customised to suit client needs and purpose. Chemical and mechanical tests are run on all batches to ensure all Eye Bolts are as per requirement and to the satisafaction of the customer. Eye can be of welded or forged construction depending on the load required to be sustained. Similarly, threads can be cut or rolled. Eye Bolts are supplied with one nut. Extra nuts or washers can be supplied if required.

AVAILABLE IN A VARIETY OF STRENGTH RATINGS AND GRADES
CAN BE SUPPLIED AS PART OF STAY SET ASSEMBLY ALONG WITH STAY ROD, STAY PLATES, TURNBUCKLE AND THIMBLE
EYE MAY BE WELDED OR FORGED AS REQUIRED
PRODUCTS HOT DIP GALVANIZED AS PER BS EN ISO 1461 OR EQUIVALENT INTERNATIONAL STANDARDS
PRODUCTS MANUFACTURED AS PER ALL ESTABLISHED INTERNATIONAL STANDARDS SUCH AS ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
PRODUCTS CAN BE MANUFACTURED OR CUSTOMISED AS PER CLIENT REQUIREMENT

PRODUCT CODE	DIMENSION
	DIA		LENGTH		THREAD LENGTH	EYE WIDTH
	MM	IN	MM	IN	MM	MM
AO-EB-HK-01	12	'1/2	100	4	75	32 / 40
AO-EB-HK-02	12	'1/2	150	6	75	32 / 40
AO-EB-HK-03	12	'1/2	200	8	100	32 / 40
AO-EB-HK-04	12	'1/2	250	10	100	32 / 40
AO-EB-HK-05	12	'1/2	300	12	150	32 / 40
AO-EB-HK-06	12	'1/2	350	14	150	32 / 40
AO-EB-HK-07	12	'1/2	400	16	200	32 / 40
AO-EB-HK-08	12	'1/2	500	20	250	32 / 40

AO-EB-HK-09	16	'5/8	150	6	75	32 / 40
AO-EB-HK-10	16	'5/8	200	8	100	32 / 40
AO-EB-HK-11	16	'5/8	250	10	100	32 / 40
AO-EB-HK-12	16	'5/8	300	12	150	32 / 40
AO-EB-HK-13	16	'5/8	350	14	150	32 / 40
AO-EB-HK-14	16	'5/8	400	16	200	32 / 40
AO-EB-HK-15	16	'5/8	500	20	250	32 / 40

AO-EB-HK-16	20	'3/4	200	8	100	40 / 50
AO-EB-HK-17	20	'3/4	250	10	100	40 / 50
AO-EB-HK-18	20	'3/4	300	12	150	45 / 50
AO-EB-HK-19	20	'3/4	350	14	150	45 / 50
AO-EB-HK-20	20	'3/4	400	16	200	45 / 50
AO-EB-HK-21	20	'3/4	500	20	250	45 / 50

AO-EB-HK-22	22	'7/8	300	12	150	50
AO-EB-HK-23	22	'7/8	350	14	150	50
AO-EB-HK-24	22	'7/8	500	16	200	50
AO-EB-HK-25	22	'7/8	600	20	250	50

AO-EB-HK-26	25	1	300	12	150	50
AO-EB-HK-27	25	1	350	14	150	50
AO-EB-HK-28	25	1	400	16	200	50
AO-EB-HK-29	25	1	500	20	250	50
