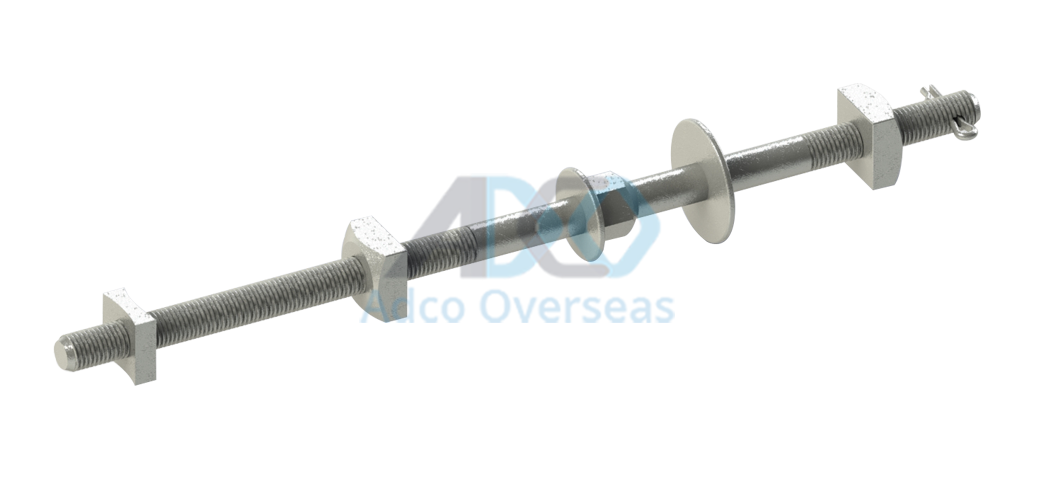

BOLT - SINGLE UPSET
- AVAILABLE IN A VARIETY OF STRENGTH RATINGS AND GRADES
- CAN BE SUPPLIED COMPLETE WITH NUTS AND WASHERS
- BOLTS MAY BE FULL OR HALF THREADED
- THREADS MAY BE CUT OR ROLLED AS REQUIRED
- THREADS MAY BE AS PER UNC, UNF, BSW, METRIC SERIES, ETC. AS REQUIRED
- PRODUCTS HOT DIP GALVANIZED AS PER BS EN ISO 1461 OR EQUIVALENT INTERNATIONAL STANDARDS
- PRODUCTS MANUFACTURED AS PER ALL ESTABLISHED INTERNATIONAL STANDARDS SUCH AS ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
- PRODUCTS CAN BE MANUFACTURED OR CUSTOMISED AS PER CLIENT REQUIREMENT
| PRODUCT CODE |
DIMENSION |
| BOLT DIA |
OVERALL LENGTH |
SHANK LENGTH |
THREAD LENGTH |
| IN |
IN |
IN |
IN |
| AO-BLT-SUP-01 |
'5/8 |
'12.5 |
'8 |
'6 |
| AO-BLT-SUP-02 |
'5/8 |
'13.5 |
'9 |
'6 |
| AO-BLT-SUP-03 |
'5/8 |
'14.5 |
'10 |
'6 |
| AO-BLT-SUP-04 |
'5/8 |
'16.5 |
'12 |
'6 |
| AO-BLT-SUP-05 |
'5/8 |
'18.5 |
'14 |
'6 |
| AO-BLT-SUP-06 |
'5/8 |
'20.5 |
'16 |
'6 |
| AO-BLT-SUP-07 |
'5/8 |
'22.5 |
'18 |
'6 |
| AO-BLT-SUP-08 |
'5/8 |
'24.5 |
'20 |
'20 |
