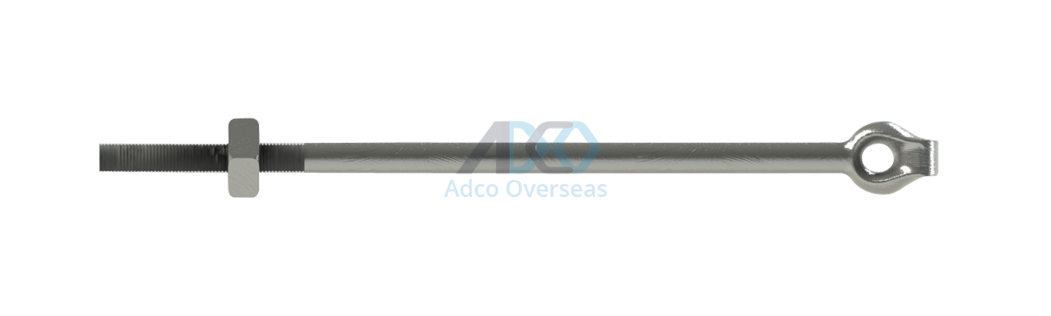

ANCHOR ROD - THIMBLE EYE

Stay Rods, also known as Anchor Rods or Guy Rods, are used to effectively anchor the poles to the ground. They can be manufactured from mild steel or carbon steel depending on the purpose and the strength required. Our Stay Rods are suitable for both HV and LV applications. Stay Rods are hot dip galvanized after manufacturing to give smooth finish and to prevent from rust. Manufacturing and galvanzing are done as per prevalent international standards and can also be customised to suit client needs and purpose. Chemical and mechanical tests are run on all batches to ensure all Anchor Rods are as per requirement and to the satisafaction of the customer. Anchor Rods are generally used together with a variety of products such as Stay or Anchor Plates,Turnbuckle, Stay Tightener, Eye Bolts, Pole Clamps, Stay Brackets, Guy Grips, etc.. Our product range includes all anciliary products are we provide a one-stop solution for all fittings and accessories required for Stay and Anchor Rods.

  • AVAILABLE IN A VARIETY OF STRENGTH RATINGS AND GRADES
  • CAN BE SUPPLIED AS NON-ADJUSTABLE OR ADJUSTABLE AND ALONG WITH STAY PLATES, TURNBUCKLES AND THIMBLE
  • EYE MAY BE WELDED OR FORGED AS REQUIRED
  • PRODUCTS HOT DIP GALVANIZED AS PER BS EN ISO 1461 OR EQUIVALENT INTERNATIONAL STANDARDS
  • PRODUCTS MANUFACTURED AS PER ALL ESTABLISHED INTERNATIONAL STANDARDS SUCH AS ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
  • PRODUCTS CAN BE MANUFACTURED OR CUSTOMISED AS PER CLIENT REQUIREMENT
PRODUCT CODE DIMENSION
DIA LENGTH THREAD LENGTH
MM IN MM FT MM
AO-SR-TE-01 16 '5/8 1500 5 150
AO-SR-TE-02 16 '5/8 1800 6 150
AO-SR-TE-03 16 '5/8 2000 - 300
AO-SR-TE-04 16 '5/8 2400 8 300

AO-SR-TE-05 20 '3/4 1800 6 150
AO-SR-TE-06 20 '3/4 2000 - 300
AO-SR-TE-07 20 '3/4 2400 8 300

AO-SR-TE-08 22 '7/8 1800 6 150
AO-SR-SH-09 22 '7/8 2000 - 300
AO-SR-TE-10 22 '7/8 2400 8 300

AO-SR-TE-11 25 1 1800 6 150
AO-SR-TE-12 25 1 2000 - 300
AO-SR-TE-13 25 1 2400 8 300
AO-SR-TE-14 25 1 3000 10 450
