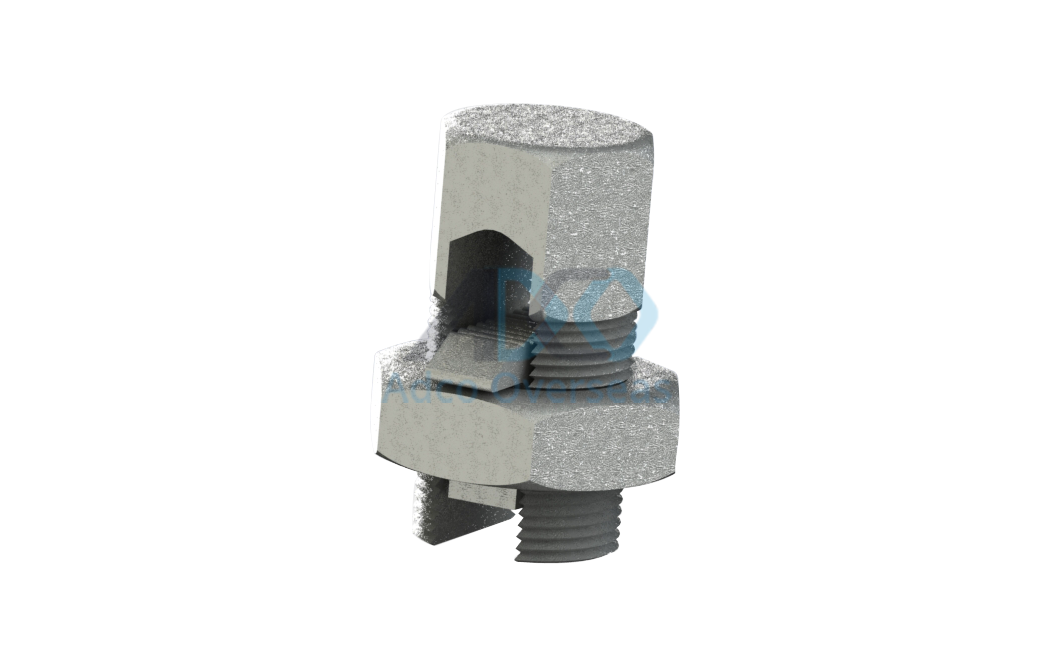

Line Tap - Split Bolt
- Made from Aluminium or Copper
- Design and size can be modified and manufactured as per customer requirement and use
- Available for all sizes of ACSR, AAC, AAAC, Copper Conductors, etc.
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
| PRODUCT CODE |
DIMENSIONS |
| SUITABLE CONDUCTOR CROSS SECTION |
HEAD WIDTH |
LENGTH |
| MM2 |
MM |
MM |
| AO-LT-SPL-01 |
16 |
14.00 |
26 |
| AO-LT-SPL-02 |
25 |
18.5 |
29 |
| AO-LT-SPL-03 |
10 - 25 |
16.00 |
30 |
| AO-LT-SPL-04 |
35 |
20.80 |
34 |
| AO-LT-SPL-05 |
25 - 70 |
24.00 |
42 |
| AO-LT-SPL-06 |
50 - 70 |
27.70 |
42 |
| AO-LT-SPL-07 |
70 - 120 |
30.00 |
55 |
| AO-LT-SPL-08 |
90 - 120 |
30.00 |
50 |
| AO-LT-SPL-09 |
150 |
48.00 |
74 |
| AO-LT-SPL-10 |
150 - 180 |
34.60 |
63 |
| AO-LT-SPL-11 |
200 - 240 |
32.00 |
72 |
