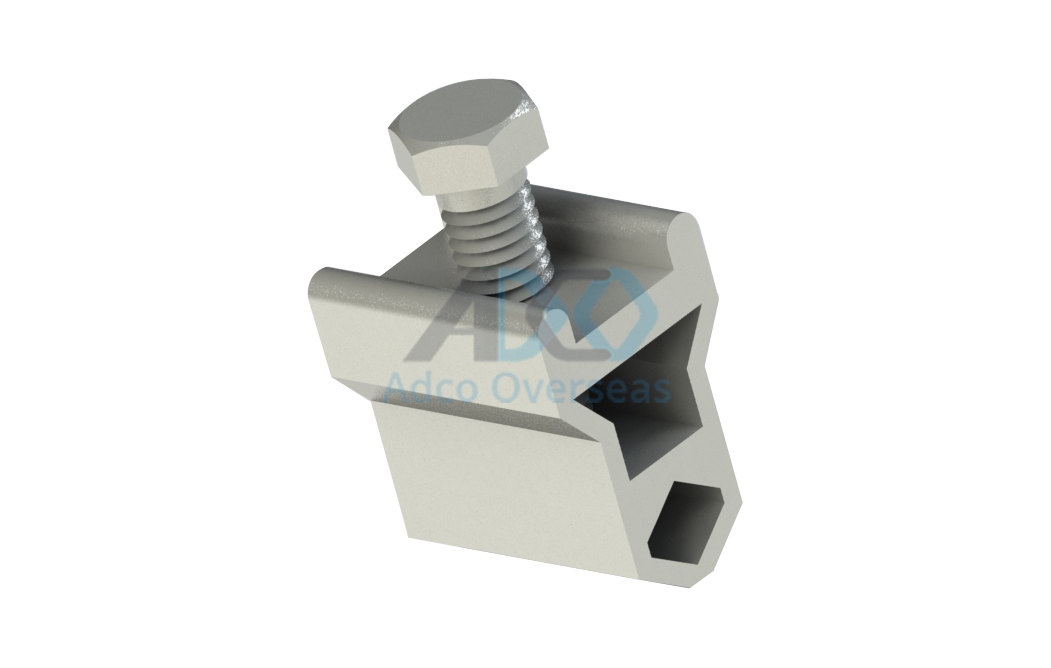

Line Tap - Saddle

Made from Aluminium
Design and size can be modified and manufactured as per customer requirement and use
Available for all sizes of ACSR, AAC, AAAC, Copper Conductors, etc.
Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.

PRODUCT CODE	DIMENSION
	SUITABLE CONDUCTOR CROSS SECTION	BODY LENGTH	BODY WIDTH	BOLT SIZE
	MM²	MM	MM	MM
AO-LT-SDL-01	50	41	30	8
AO-LT-SDL-02	100	55	48	10
