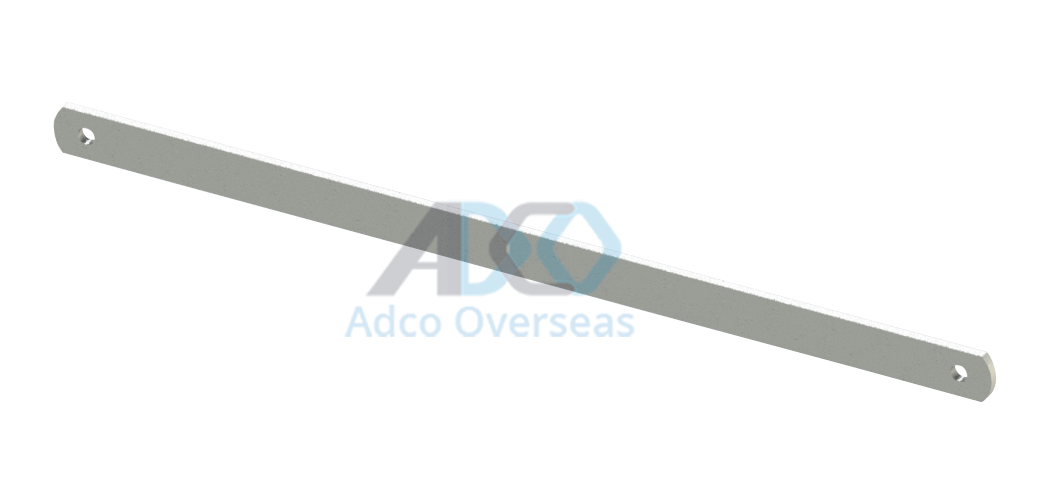

CROSSARM - FLAT BRACE
- AVAILABLE FOR APPLICATION FOR ALL KINDS OF OVERHEAD LINES
- AVAILABLE IN A VARIETY OF STRENGTH RATINGS AND GRADES
- CAN BE USED WITH ALL TYPES OF POLES, INCLUDING STEEL POLE, RCC, PSC AND WOODEN
- CAN BE SUPPLIED WITH POLE CLAMPS, BRACES, STRAPS OR OTHER FITTINGS
- PRODUCTS HOT DIP GALVANIZED AS PER BS EN ISO 1461 OR EQUIVALENT INTERNATIONAL STANDARDS
- PRODUCTS MANUFACTURED AS PER ALL ESTABLISHED INTERNATIONAL STANDARDS SUCH AS ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
- PRODUCTS CAN BE MANUFACTURED OR CUSTOMISED AS PER CLIENT REQUIREMENT
| PRODUCT CODE |
DIMENSIONS |
| LENGTH |
FLAT SIZE |
THICKNESS |
LENGTH |
| MM |
IN |
MM |
MM |
MM |
| AO-XA-FBR-01 |
457.2 |
18 |
32 / 50 |
5 / 6 / 10 |
AS PER REQUIREMENT |
| AO-XA-FBR-02 |
508 |
20 |
32 / 50 |
5 / 6 / 10 |
| AO-XA-FBR-03 |
609.6 |
24 |
32 / 50 |
5 / 6 / 10 |
| AO-XA-FBR-04 |
660.4 |
26 |
32 / 50 |
5 / 6 / 10 |
| AO-XA-FBR-05 |
710 |
28 |
32 / 50 |
5 / 6 / 10 |
| AO-XA-FBR-06 |
760 |
30 |
32 / 50 |
5 / 6 / 10 |
| AO-XA-FBR-07 |
810 |
32 |
32 / 50 |
5 / 6 / 10 |
| AO-XA-FBR-08 |
914 |
36 |
32 / 50 |
5 / 6 / 10 |
