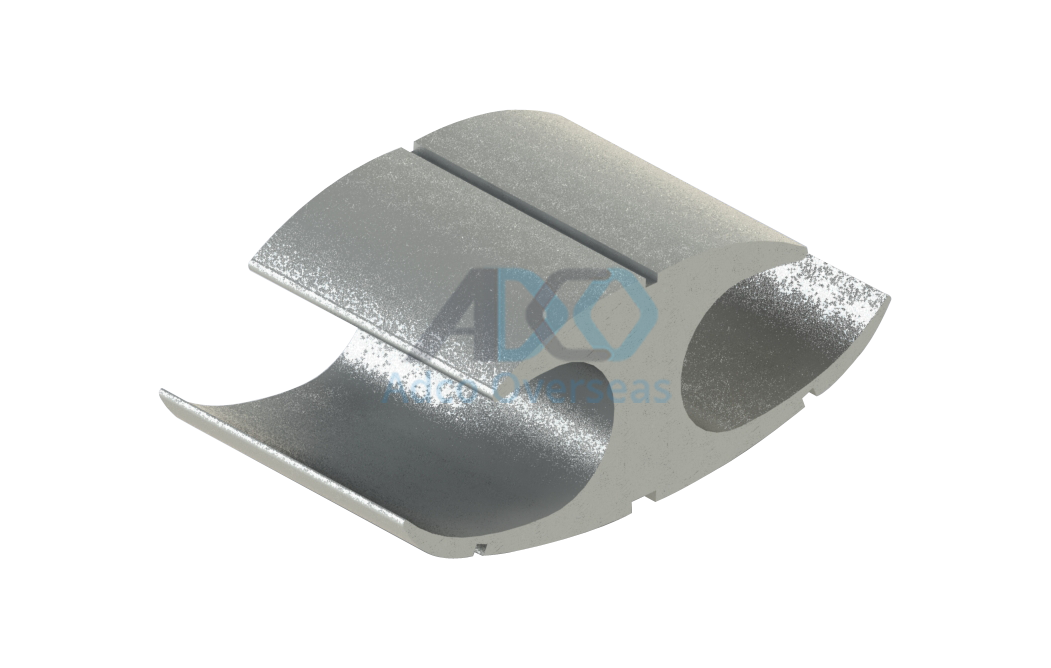

Compression Connector - "H" Type
- Made from extruded aluminium section
- Design and size can be modified and manufactured as per customer requirement and use
- Available for all sizes of conductors
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
| PRODUCT CODE |
DIMENSIONS |
| SUITABLE CONDUCTOR / CABLE DIA |
WIDTH |
HEIGHT |
LENGTH |
| MM2 |
MM2 |
MM |
MM |
MM |
| AO-CCO-H-01 |
16 - 35 |
16 - 35 |
17 |
24 |
38 |
| AO-CCO-H-02 |
16 - 35 |
35 - 70 |
18 |
26 |
46 |
| AO-CCO-H-03 |
35 - 70 |
35 - 70 |
21 |
30 |
47 |
| AO-CCO-H-04 |
70 - 120 |
70 - 120 |
23 |
36 |
52 |
| AO-CCO-H-05 |
35 - 150 |
70 - 150 |
23 |
34 |
70 |
| AO-CCO-H-06 |
70 - 150 |
70 - 150 |
25 |
39 |
70 |
| AO-CCO-H-07 |
35 - 70 |
120 - 240 |
28 |
42 |
90 |
| AO-CCO-H-08 |
70 - 150 |
120 - 240 |
32 |
46 |
90 |
| AO-CCO-H-09 |
120 - 240 |
120 - 240 |
32 |
52 |
90 |
| AO-CCO-H-10 |
150 - 300 |
150 - 300 |
32 |
52 |
100 |
