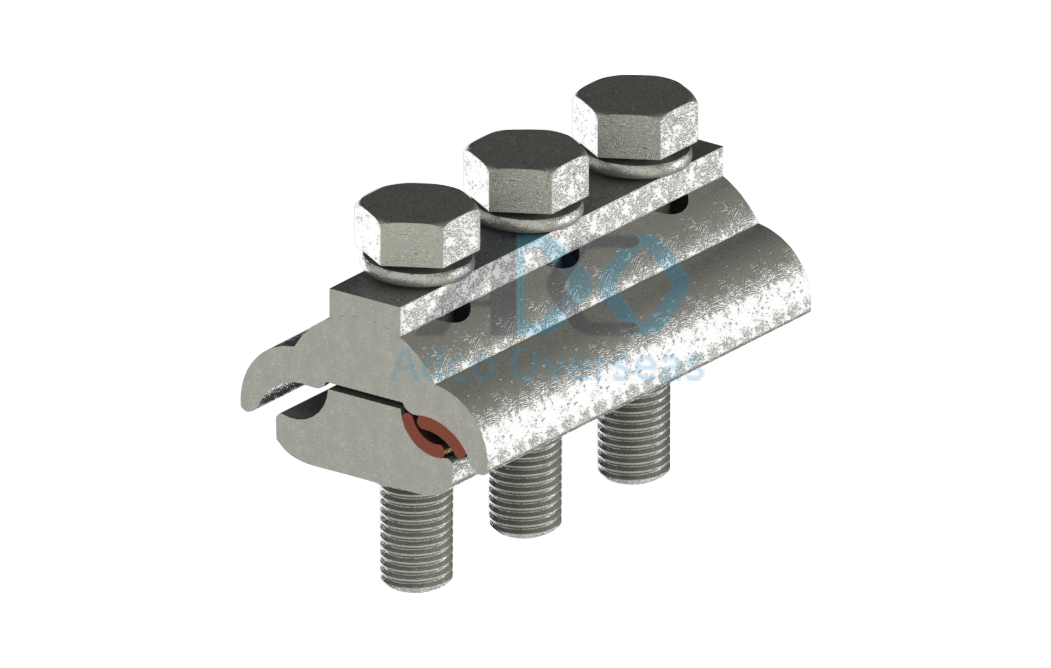

Clamp - Bimetallic Parallel Groove
- Made from Aluminium or Copper (in case of Bimetallic)
- Manufactured from high strength extruded aluminium or cast aluminium alloy
- Design and size can be modified and manufactured as per customer requirement and use
- Available for all sizes of ACSR, AAC, AAAC, Copper Conductors, etc.
- Bolts also available in all grades and sizes
- Manufactured as per all established international standards such as ASTM , ANSI, BSI (BS) , BS EN, ISO, IEC, EN, BIS (IS) , DIN, SABS (SANS), NFC, ETC.
| PRODUCT CODE |
DIMENSIONS |
| SUITABLE CONDUCTOR CROSS SECTION |
WIDTH |
LENGTH |
BOLT SIZE |
NO. OF BOLT |
| MAIN (ALUMINIUM, MM2) |
TAP (COPPER, MM2) |
MM |
MM |
MM |
|
| AO-CLP-BPG-01 |
16 - 70 |
6 - 50 |
26 |
26 |
8 |
1 |
| AO-CLP-BPG-02 |
25 - 150 |
10 - 95 |
36 |
50 |
8 |
2 |
| AO-CLP-BPG-03 |
35 - 120 |
6 - 35 |
40 |
42 |
8 |
2 |
| AO-CLP-BPG-04 |
35 - 200 |
16 - 185 |
57 |
63 |
10 |
2 |
| AO-CLP-BPG-05 |
35 - 300 |
35 - 240 |
65 |
104 |
10 |
3 |
